Product Description :

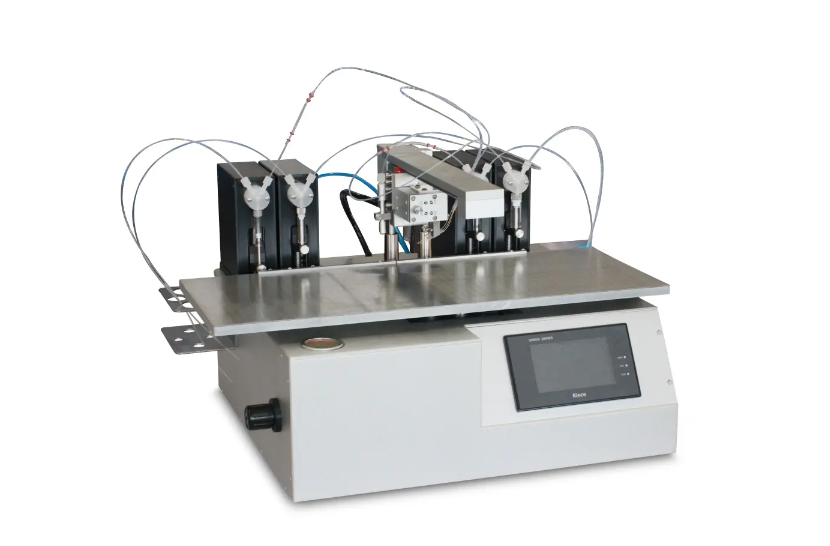

The equipment is a high-tech product researched and developed by Kinbio, which integrates membrane dispensing and gold spraying as a whole. HM3030/HM3035 platform is driven by the motor at X axis (vertical position), Y axis (horizontal position) and Z axis (position of dispensing tip and platform height). 3D positioning is conducted by inputting the number into the operating interface, in order to achieve the reagent coating effect.
HM3035 builds Vacuum adsorption platform and automatic conversion module that shift between dispensing and spraying.
Product Specification :
1.Dispensing efficiency: 200—300 sheets (30cm) /hour
2.Spraying efficiency: 700～900 strips (30cm)/hour
3.Platform moving speed: 50—200mm/s
4.Platform (working) area：540X150(320X140)mm
5.Dispensing tips minimum interval:3mm
6.Dispensing tips distance adjustment: Stepless adjustment by screw rod
7.Dispensing pump standard capacity: 500ul
8.Spraying pump standard capacity: 1000ul
9.Dispensing reagent concentration：0.2-9.99ul/cm
10.Spraying reagent concentration：1.0-9.99ul/cm
11.Minimum fill and drain volume：1ul
12.Reagent residual volume: 0
13.Dispensing tip position precision：±0.1mm
14.Equipment dimension：540X450X350mm
15.Equipment weight：28KG
