Manufactured By : Shanghai Kinbio Tech.Co., Ltd.
Country : China
Catalogue Number : GZ350-1-A
Stock Status : Available
Delivery : 4-6 Weeks
| Optional pump head | : Single Syringe Pump/Double Syringe Pump. | : Peristaltic Pump |
| Filling volume (ml) | : 0.03 – 3 | : 0.2 – 60 |
| Filling precision | : < ± 1% | : < ± 5% |
| Filling efficiency (pcs/min) | : 20 – 45 | : 30 – 45 |
| Air supply (L/min) | > 80 | |
| Air pressure (Mpa) | Ø0.4 | |
| Dimension (mm) | 1000 * 1100 * 700 | |
| Weight (Kg) | 150 – 200 | |
| Power source | 220V/50Hz/5A | |
| Power | 700W | |
| Bottle carrying module | SUS 304 | |
| Inner cap carrying module | SUS 304 | |
| Outer cap carrying module | SUS 304 | |
| Material of sample injecting needle | SUS 304 | |

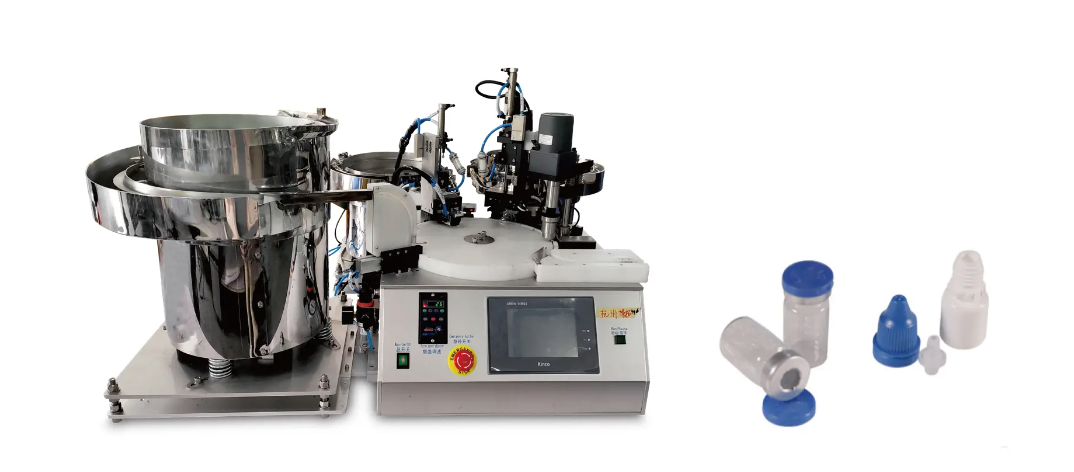

Double caps filling machine is a full-automatic filling equipment integrating automatic bottle feeding, reagent filling, inner cap feeding and outer cap screwing functions. After the bottle is fed onto the turntable, the machine will then finish the processes of reagent filling, inner cap and outer cap placing and cap screwing. It meets one-bottle with two caps filling demands and greatly improves the filling efficiency.
Suitable for all kinds of dropper reagent bottles, etc.
